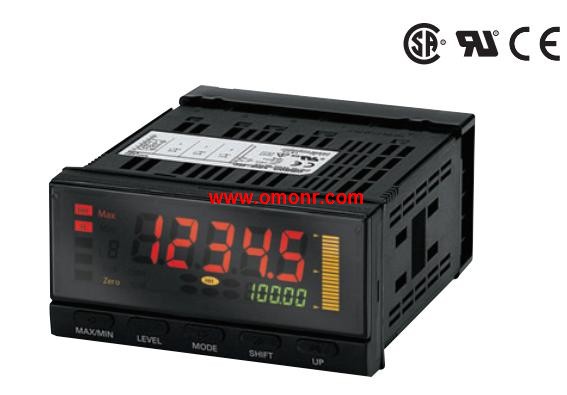

K3HB-VLC-FLK1ET11 AC/DC24 | OMRON Load sensor, mV instrument K3HB-VLC-FLK1ET11 AC/DC24
OMRON K3HB-VLC-FLK1ET11 AC/DC24 Manual And Instructions
K3HB-VLC-FLK1ET11 AC/DC24 datasheetPDF datasheet

OMRON K3HB-VLC-FLK1ET11 AC/DC24 Product information and technical parameters:
Brand: OMRON
Name: Load sensor, mV instrument
Model: K3HB-VLC-FLK1ET11 AC/DC24
Category: external supply 100mA DC5V type.
Input type: load sensor, mV input type.
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
Communication: RS-232C; NPN open collector (HH, H, PASS, L, LL).
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC/DC24V.
To support the sensor input, the pressure, load, torque and weight were measured,
Is an ideal indicator for judging whether an automatic device and a screening device are qualified.
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event transport

Input type: DC current input.
Output type: no output.
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V.
Power supply voltage: AC100 ~ 240V.
96 (W) * 48 (H * 95mm) some models are not equipped with depth.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table OMRON K3HB-VLC-FLK1ET11 AC/DC24 K3HB-VLC-FLK1ET11 AC/DC24
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
Series of DeviceNet type.
The depth (panel below) is only short size 95mm OMRON K3HB-VLC-FLK1ET11 AC/DC24. Rated supply voltage: 100 to 240 VAC.
Resetting system (See note.): Electric resetting.
Control output: DPDT contact output,
(Time-limit output SPDT and instantaneous output SPDT).
Time range: 1 s to 60 h (60 s, 6 min, 60 min, 6 h, 60 h).
Large Setting Dial and Moving Pointers Ideal,
for Easy Operation and Monitoring.
Incorporating an easy-to-see large setting dial with moving pointers OMRON K3HB-VLC-FLK1ET11 AC/DC24.
Wide time-setting range of 0.2 s to 60 h.
(available through three time-range model types).
Wide AC power supply range (100 to 240 VAC).
IP65 watertight and dust-tight front panel.
Approved by UL and CSA.
Conforms to EN61812-1 and IEC60664-1.
4 kV for Low Voltage, and EMC Directives.
Conforms to EMC standards.
Six-language instruction manual provided.
Programmable contact enables the building of a self-holding,
relay circuit as well as built-in instantaneous contact. (-NS).
Memory retention (-NSR).
Finger protection terminal block.
Enables easy sequence checks through instantaneous outputs.
for a zero set value at any time range. Classification: Preset Counter.
Input signal system (Count & reset inputs): Contact, Transistor.
Mounting method: Flush mounting, surface mounting.
Display: 7-segment LEDs (10 mm high), Up indicator.
Number of digits: 4 digits (0 to 9,999).
Backup power for memory protection: No.
Control output: Contact (SPST-NO).
Operating mode: Up counting.
Max.counting speed: 5 kcps (see note 1.).
All Required Counter Functions.
Incorporated in a Compact DIN-sized.
(48 × 48) Housing.
In addition to Up and Down models, aa reversible (Up-Down),
counter is also available K3HB-VLC-FLK1ET11 AC/DC24.
Maximum counting speed of 5,000 cps, never before attained by,
a small-size preset counter.
Power supply freely selectable within a range of 100 to 240 VAC.
Also, poweer supply for the DC-operated models is selectable,
within a range of 12 to 48 V K3HB-VLC-FLK1ET11 AC/DC24.
Models with memory backup function against power failure available.
