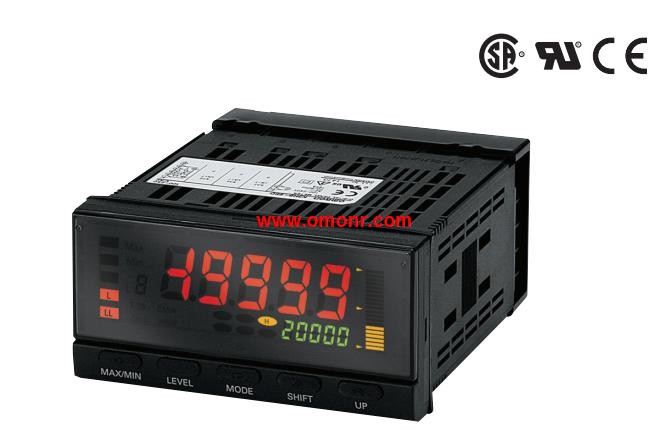

K3HB-XAA-1 AC100-240 | OMRON Voltage and current panel meter K3HB-XAA-1 AC100-240
OMRON K3HB-XAA-1 AC100-240 Manual And Instructions
K3HB-XAA-1 AC100-240 datasheetPDF datasheet
OMRON K3HB-XAA-1 AC100-240 Product information and technical parameters：
Brand: OMRON
Name: Voltage and current panel meter
Model: K3HB-XAA-1 AC100-240
Type of input: AC current input.
Output type: no output.
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V.
Power supply voltage: AC100 ~ 240V.
96 (W) * 48 (H * 95mm) some models are not equipped with depth.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table.
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
Series of DeviceNet type.
The depth (panel below) is only short size 95mm.
