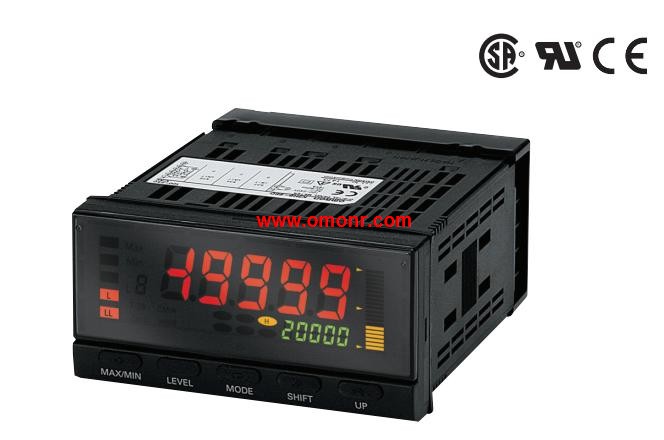

K3HB-XVD-CPAC11 AC/DC24 | OMRON Voltage and current panel meter K3HB-XVD-CPAC11 AC/DC24
OMRON K3HB-XVD-CPAC11 AC/DC24 Manual And Instructions
K3HB-XVD-CPAC11 AC/DC24 datasheetPDF datasheet
OMRON K3HB-XVD-CPAC11 AC/DC24 Product information and technical parameters：
Brand: OMRON
Name: Voltage and current panel meter
Model: K3HB-XVD-CPAC11 AC/DC24
Input type: DC voltage input type.
Output type: relay contact; 1c H; PASS, L: each 1c.
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V.
Power supply voltage: AC/DC24V.
96 (W) * 48 (H * 95mm) some models are not equipped with depth.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table.
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
Series of DeviceNet type.
Depth (panel
