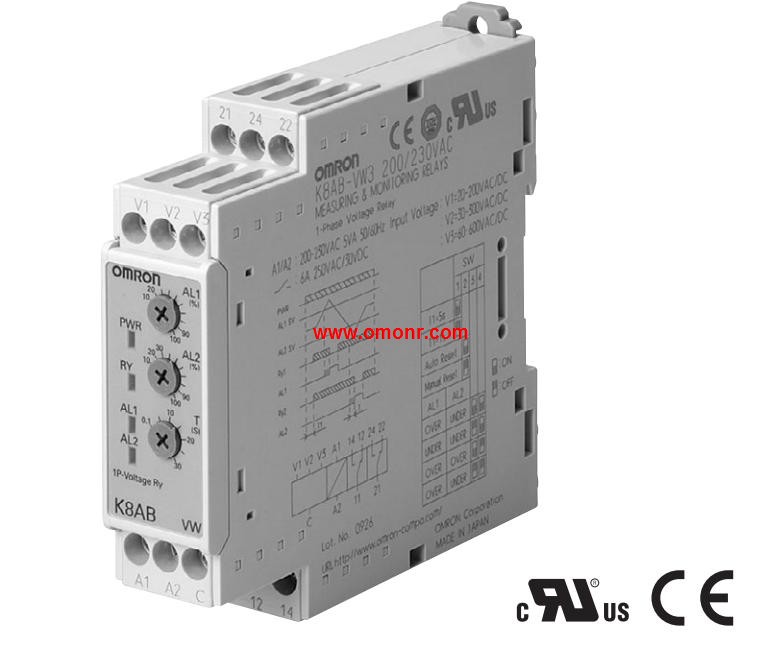

K8AB-VW3 AC/DC24V | OMRON Single-phase Voltage Relay K8AB-VW3 AC/DC24V
OMRON K8AB-VW3 AC/DC24V Manual And Instructions
K8AB-VW3 AC/DC24V datasheetPDF datasheet
K8AB-VW3 AC/DC24V datasheetPDF datasheet
K8AB-VW3 AC/DC24V datasheetPDF datasheet
OMRON K8AB-VW3 AC/DC24V Product information and technical parameters：
Brand: OMRON
Name: Single-phase Voltage Relay
Model: K8AB-VW3 AC/DC24V
Measuring voltage: 20 to 200 V AC/DC, 30 to 300 V AC/DC, 60 to 600 V AC/DC.
Supply voltage: 24 VAC/DC.
Ideal for voltage monitoring for industrial.
facilities and equipment.
Monitor for overvoltages and undervoltages simultaneously.
Separate settings and outputs supported for overvoltages and,
undervoltages.
Manual resetting and automatically resetting supported by one Relay.
Pre-alarm Monitoring Mode.
Two SPDT output relays, 6 A at 250 VAC (resistive load).
Process control signal (0 to 10 V) and current splitter input supported.
Output status can be monitored using LED indicator.
Input frequency of 40 to 500 Hz supported.
Inputs are isolated from the power supply.
