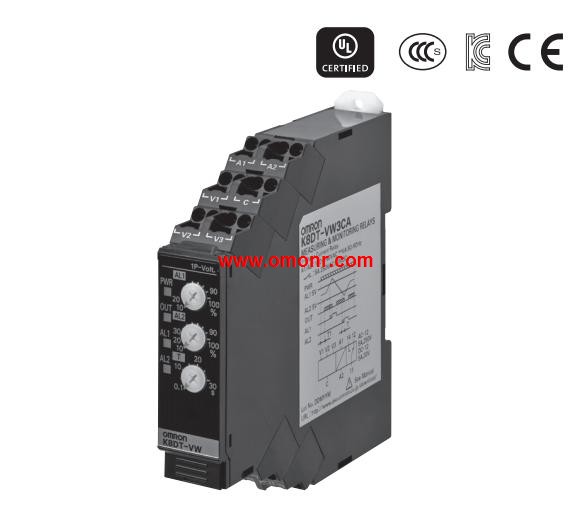

K8DT-VW Series | OMRON Single-phase Overvoltage/Undervoltage Relay K8DT-VW Series
OMRON K8DT-VW Series Manual And Instructions
K8DT-VW Series datasheetPDF datasheet
K8DT-VW Series datasheetPDF datasheet
OMRON K8DT-VW Series Product information and technical parameters：
Brand: OMRON
Name: Single-phase Overvoltage/Undervoltage Relay
Model: K8DT-VW Series
Detect abnormal voltages applies to equipment to,
protect against equipment failure.
Monitor for overvoltages and undervoltages,
simultaneously with one Relay.
Monitor AC or DC voltages with one Relay.
Settings for the operating value, hysteresis, and operating time.
Width of 17.5 mm to reduce space required in panels.
Push-In Plus Terminal that reduce wiring work.
The use of cage clamps enables wiring with bare stranded wires.
Double-insertion holes for crossover wiring (all terminals).
UL listed for easy shipping to North America.
Models added with transistor outputs for superior contact reliability.
