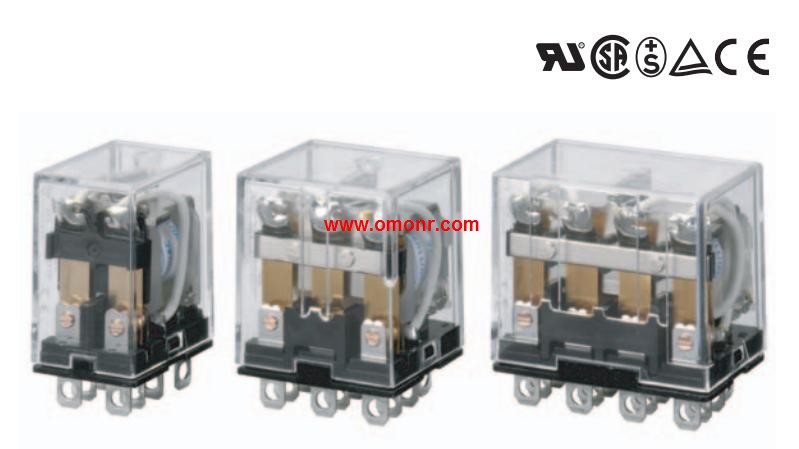

LY2-CR | OMRON Bi-power Relays LY2-CR
OMRON LY2-CR Manual And Instructions
LY2-CR datasheetPDF datasheet
OMRON LY2-CR Product information and technical parameters：
Brand: OMRON
Name: Bi-power Relays
Model: LY2-CR
Structure: Relays with Plug-in Terminals.
Classification: Models with CR circuits for coil surge absorption,
(AC coil specification only).
Number of poles: 2.
Power-switching Compact.
General-purpose Relays.
The standard models include models that are,
compliant with the UL, CSA, and SEV safety.
standards and with the Electrical Appliances and,
Material Safety Act.
Equipped with an arc barrier for arc interruption.
Withstand voltages up to 2,000 V.
New built-in diode and built-in CR circuit models have,
joined the series.
The lineup also includes models that are compliant,
with the LR and VDE safety standards.
Single-pole and double-pole models have AC4,
ratings and DC2 ratings (operating coil ratings:
100/110 VAC, 110/120 VAC, 200/220 VAC, 220/240 VAC,
and 100/110 VDC).
Three-pole and four-pole models have AC4 ratings,
and DC2 ratings (operating coil ratings: 100/110,
VAC, 200/220 VAC and 100/110 VDC).
