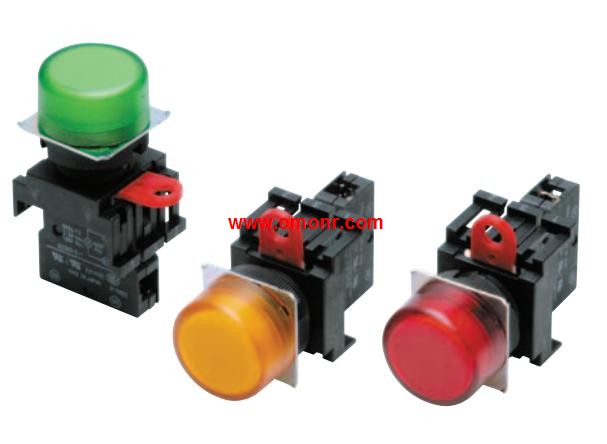

M22-FG-6A | OMRON Indicator M22-FG-6A
OMRON M22-FG-6A Manual And Instructions
M22-FG-6A datasheetPDF datasheet
OMRON M22-FG-6A Product information and technical parameters：
Brand: OMRON
Name: Indicator
Model: M22-FG-6A
Appearance: Round/Flat without Voltage Reduction Unit M22-F.
Lighting: LED.
Operating voltage: 6 VAC/VDC.
Illumination color: R (red); Y (yellow); G (green); W (white); A (blue).
Round Indicator Series with 22 dia. and.
25 dia. (when using a ring).
Same type as the A22-series Pushbutton Switches.
Use 25-dia. ring to install in 25-dia. panel cutouts.
IP65.
