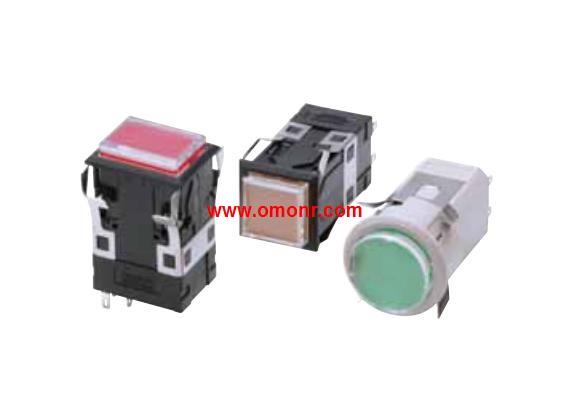

M2PA-90A22-24EWG | OMRON Indicator M2PA-90A22-24EWG
OMRON M2PA-90A22-24EWG Manual And Instructions
M2PA-90A22-24EWG datasheetPDF datasheet
OMRON M2PA-90A22-24EWG Product information and technical parameters：
Brand: OMRON
Name: Indicator
Model: M2PA-90A22-24EWG
Case color: Light gray.
Lighting method: LED; 24 VDC.
Display color symbol: R.O.G.W.
Large Rectangular-bodied Indicators.
Excellent illumination with even surface brightness.
Three-color models (green, orange, red; chameleon lighting),
included in lineup.
