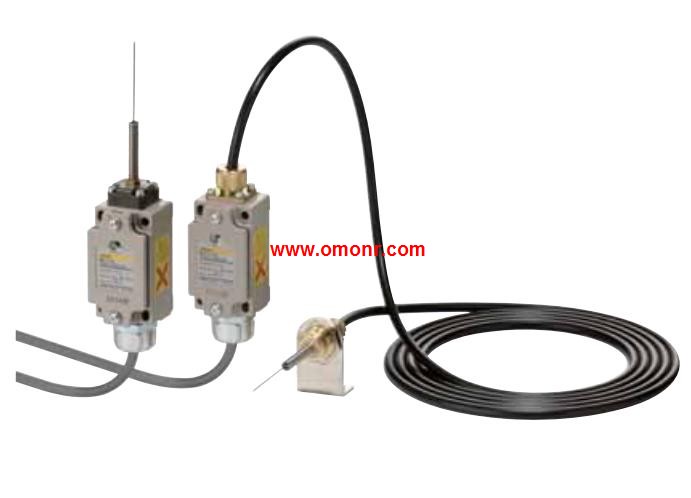

NL1-P | OMRON Limit Touch Switch NL1-P
OMRON NL1-P Manual And Instructions
NL1-P datasheetPDF datasheet
OMRON NL1-P Product information and technical parameters：
Brand: OMRON
Name: Limit Touch Switch
Model: NL1-P
Model: Built-in antenna model.
Features: Ensures high-precision positioning control; OT of 5-mm max. (overtravel).
Antenna: Plunger.
Series: NL1.
Power supply voltage: 12 VDC.
Object Actuates Switch and Turns.
Built-in Monitor Indicator ON.
Instantaneous operation upon contact with extremely.
limited hysteresis for high-precision position detection.
Detects minute displacement or lightweight objects with.
minimal operating force.
Built-in LED indicator ensures easy operation monitoring.
DC models provide versatile functions in combination.
with the S3D2 Sensor Controller.
