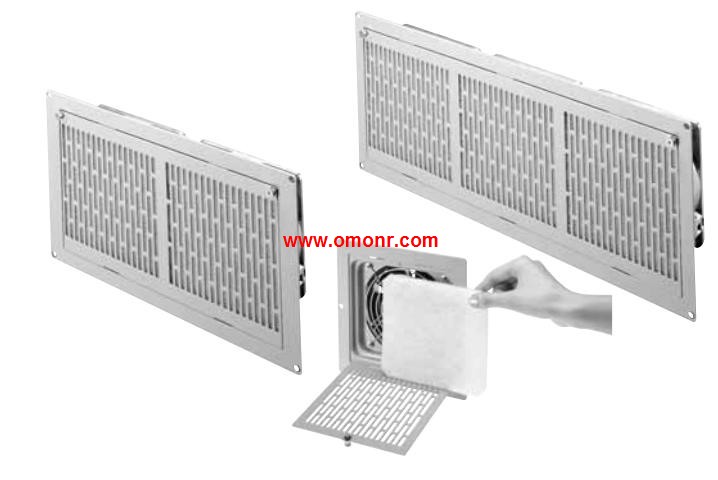

R87B-TA1A15HPF | OMRON Box Fan R87B-TA1A15HPF
OMRON R87B-TA1A15HPF Manual And Instructions
R87B-TA1A15HPF datasheetPDF datasheet
R87B-TA1A15HPF Connection Guide
OMRON R87B-TA1A15HPF Product information and technical parameters：
Brand: OMRON
Name: Box Fan
Model: R87B-TA1A15HPF
Rated voltage: 100 V.
Permitted voltage fluctuation range: 85% to 110% rated voltage.
Frequency: 50/60 Hz.
Rated rotational speed: 50 Hz, 2650 r/min; 60 Hz, 3000 r/min.
Maximum flow rate: 50 Hz, 1.1 m3/min; 60 Hz, 1.3 m3/min.
Maximum static pressure: 50 Hz, 67 Pa; 60 Hz, 63 Pa.
Noise: 50 Hz, 45 dB; 60 Hz, 48 dB.
Weight: Approx. 1150 g.
