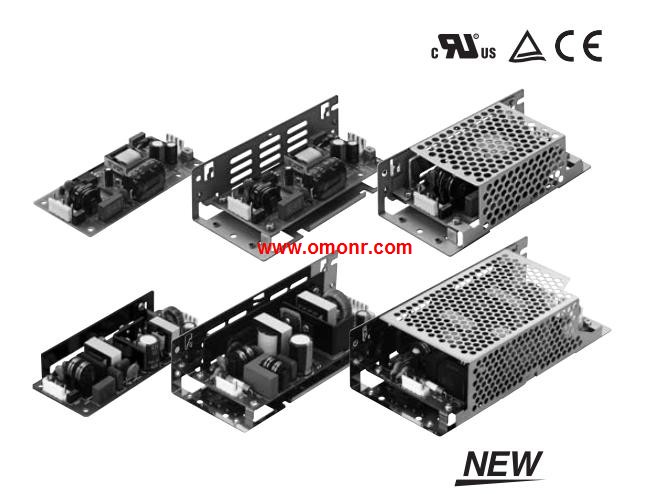

S8EX-P15005LC | OMRON Switch Mode Power Supply S8EX-P15005LC
OMRON S8EX-P15005LC Manual And Instructions
S8EX-P15005LC datasheetPDF datasheet
S8EX-P15005LC EtherNet/IP Connection Guide
OMRON S8EX-P15005LC Product information and technical parameters：
Brand: OMRON
Name: Switch Mode Power Supply
Model: S8EX-P15005LC
Power ratings: 150 W.
Output voltage: 5 V.
Output current: 30 A.
Boost current: --.
Newly Released High-capacity 240-W Models in S8EX-series Lineup.
Rated Output of 300 W for 200 VAC.
From 170 to 264 VAC.
New 240-W Models.
Lineup of models with 24-, 36-, and 48-VDC output.
voltages.
15-W, 35-W, 50-W, 100-W, and 150-W Models.
Lineup of models with from 5 to 48-VDC output.
voltages.
All Models.
Approved standards:
UL60950-1, cUR CSA C22.2 No. 60950-1, EN 50178,
and EN 60950-1.
Lineup includes open-frame models, models with.
chassis, and models with chassis and covers.
Wide-range power supply: 100 to 240 VAC.
Complies with harmonic current standard in EN.
61000-3-2 (50-W to 240-W models).
The top class in industry for compact size.
Boost current output (some models excluded).
