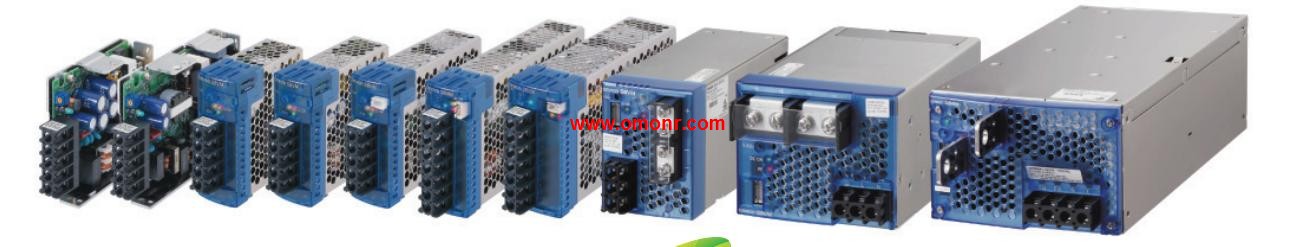

S8VM-05024P | OMRON Switching Mode Power Supply S8VM-05024P
OMRON S8VM-05024P Manual And Instructions
S8VM-05024P Connection Guide
OMRON S8VM-05024P Product information and technical parameters：
Brand: OMRON
Name: Switching Mode Power Supply
Model: S8VM-05024P
Category: incidental cover with under voltage detection function.
Structure: bottom mounting type.
Capacity: 50W.
Output voltage: 24V.
Output current: 2.2A.
Alarm output: source type.
Built in OMRON''s original new under voltage detection function of small size,
Also contribute to the miniaturization of the device.
Built in support for determining the abnormal causes of the new under voltage detection function.
(S8VM- - P - 24A - racy type)
Power failure detection function with built-in hint output voltage abnormity.
(type 300/600/1500W)
A total of 8 kinds of capacity of 29 models, a complete range of products.
Meet RoHS instructions including lead free.
Humanized design of anti - shedding screw for terminal stage.
(except for the 300/600/1500W output terminals)
Support finger touch protection to prevent electric shock.
DIN guide rail simple installation.
Safety standards: CSA, C22.2 No.14/No.60950-1 UL508/60950-1,
EN50178, EN60950-1.
(300/600/1500W type, safety standard is not applicable when the fan is replaced by the customer.)
Meet F47-0200 SEMI standards. (200V input)
High harmonic current limit: EN61000-3-2. (except for type 15/30W)
"
...More relevant models >>>>
