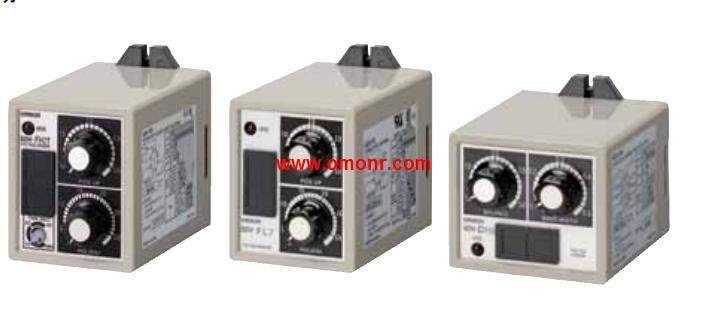

SDV-FH5T | OMRON Voltage Sensor SDV-FH5T
OMRON SDV-FH5T Manual And Instructions
SDV-FH5T datasheetPDF datasheet
SDV-FH5T User's Manual
OMRON SDV-FH5T Product information and technical parameters：
Brand: OMRON
Name: Voltage Sensor
Model: SDV-FH5T
Control power supply voltage: 125 VDC.
Input: DC or AC (selectable); input voltage range: 10 to 300 V: Operating mode,
ON-delay; OFF-delay; Startup lock.
Overvoltage/Undervoltage Monitoring.
Relay for AC and DC Input.
Detect overvoltages or undervoltages (switch select,
able) from 4 mV to 300 V.
Detect undercurrent, reverse current, or overcurrent in,
DC circuits using shunt (SDV-FL).
Detect three-phase AC current for under and/or overcur,
rent using current converter.
Available in 7 supply voltage configurations.
Single-function model with ON-delay, OFF-delay, or star,
tup lock settings (SDV-FH@T).
Select either AC or DC voltage input.
Polarity can be specified (SDV-FL) to enable easy re,
verse current detection.
Selectable reset value range from 2% to 30% of operat,
ing value (SDV-F).
LED operation indicator.
UL/CSA approval (SDV-F@).
