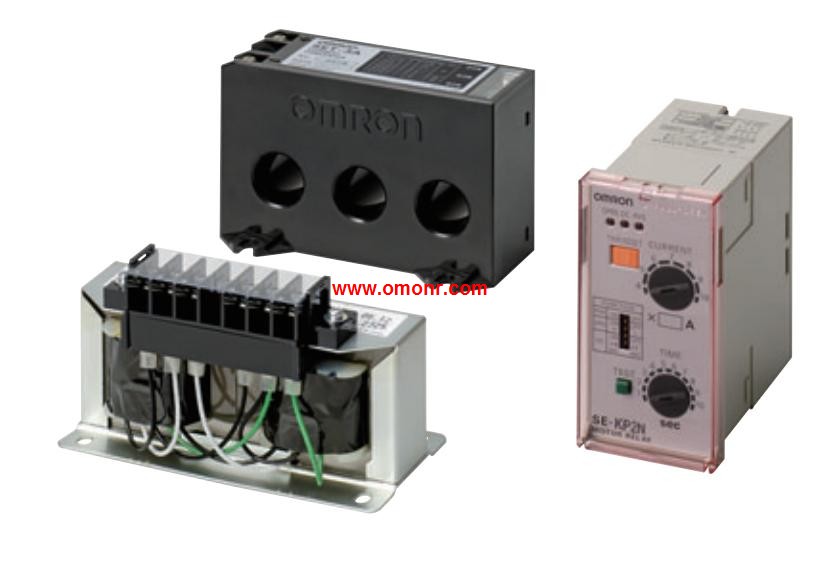

SE-KQ4N | OMRON Motor Protective Relay SE-KQ4N
OMRON SE-KQ4N Manual And Instructions
SE-KQ4N datasheetPDF datasheet
SE-KQ4N User's Manual
OMRON SE-KQ4N Product information and technical parameters：
Brand: OMRON
Name: Motor Protective Relay
Model: SE-KQ4N
Control voltage: 380/400/440 VAC.
Reset: Manual.
Model: Instantaneous type (See note 1.).
Solid-state Relay Provides Three Operating.
Functions in a Compact Package.
Prevents burnouts in 3-phase induction motors due to overcurrent,
open-phase, or reverse-phase.
LEDs indicate operation of the selected operating function.
Wide setting ranges: current: 1 to 160 A; operating time: 1 to 40 s.
Protects the motor from reversing without starting it.
before using the K2CM.
