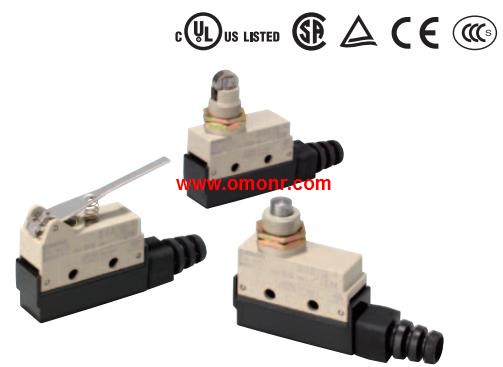

SHL-Q55 | OMRON Enclosed Switch SHL-Q55
OMRON SHL-Q55 Manual And Instructions
SHL-Q55 datasheetPDF datasheet
OMRON SHL-Q55 Product information and technical parameters：
Brand: OMRON
Name: Enclosed Switch
Model: SHL-Q55
Actuator: Panel mount plunger.
Type: Standard.
Compact, General-purpose Horizontal.
Switches.
Models for Microloads Added to Series.
Approved by EN, UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for information on approved models.),
Incorporates a switch with a durable coil spring in a tough,
high precision case.
Compact and uses a single basic switch for applications where,
strength is required.
Models for microloads and models with operation indicators,
added to series.
Terminal protective cover can be switched to wire cable from,
either the left or right.
Sealing characteristics that meet IEC IP67 degree of protection.
