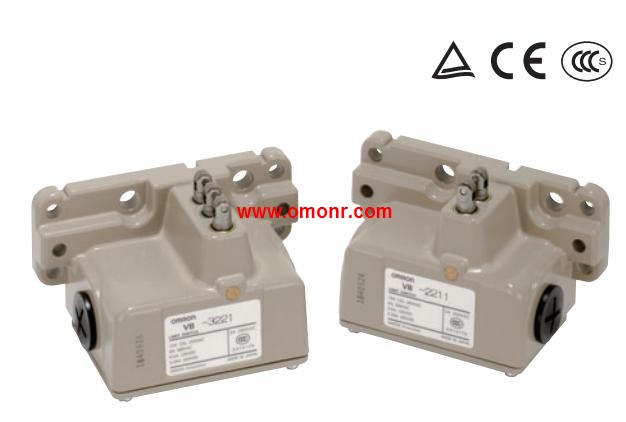

VB-2241 | OMRON Multiple Limit Switch VB-2241
OMRON VB-2241 Manual And Instructions
VB-2241 datasheetPDF datasheet
OMRON VB-2241 Product information and technical parameters：
Brand: OMRON
Name: Multiple Limit Switch
Model: VB-2241
Shape of box: Without flange.
Actuator: Roller plunger (with a 6.8-dia. roller).
Conduit: Two on the side.
A New Monoblock Multiple Limit Switch.
Incorporating a Head Box with a Tough.
Head and Ensuring High Sealing.
Performance and a Mechanical.
Durability of 5,000,000 Operations.
Used for the sequential control of a variety of engineering.
machines and belt conveyor lines.
Built-in oil filter shuts out oil and water.
Approved by EN, IEC (Ground terminal models only.) and,
CCC (Chinese standard). Ask your OMRON representative,
for information on approved models.
Ground terminal models bear the CE mark.
...More relevant models >>>>
