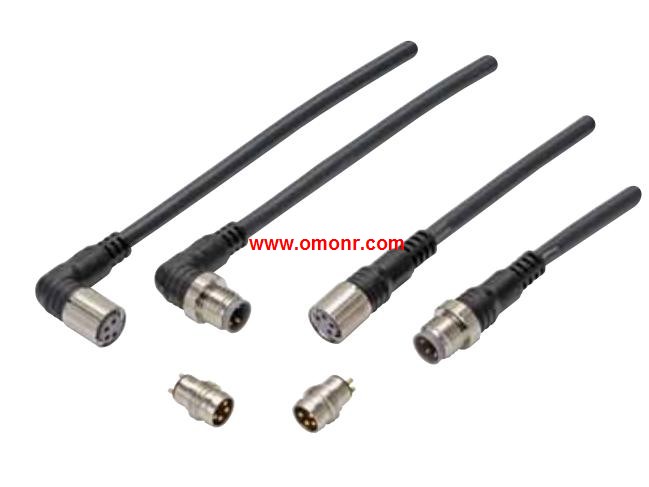

XS3M-K421-1 | OMRON Round Water-resistant Connectors XS3M-K421-1
OMRON XS3M-K421-1 Manual And Instructions
XS3M-K421-1 datasheetPDF datasheet
OMRON XS3M-K421-1 Product information and technical parameters：
Brand: OMRON
Name: Round Water-resistant Connectors
Model: XS3M-K421-1
Connection method: Embedded model.
Pin shape: DIP pins.
Applicable wires: --.
Minimum order: 200.
Small Round Water-resistive.
Connectors.
Water-resistive, compact connector meets IP67 requirements.
Conventional M8 screw-mounting models are available along with,
S8 snap-in models that connect and disconnect with one touch.
Ideal for a wide variety of FA and OA applications.
Connectors on both cable ends require no harness work.
Some new M8 models with 3 or 5 poles.
