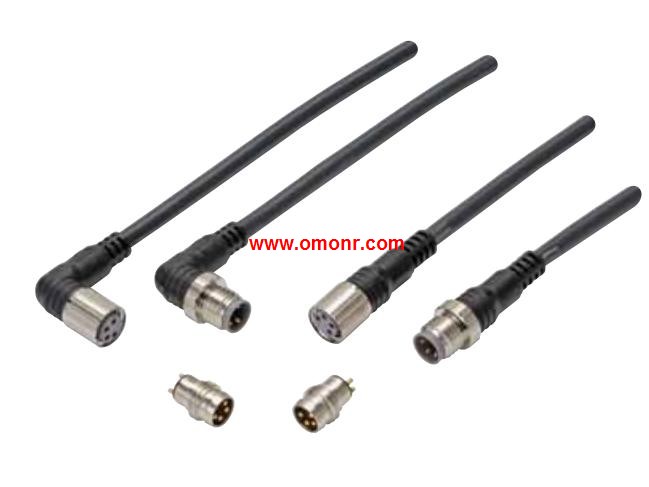

XS3P-M421-2 | OMRON Round Water-resistant Connectors XS3P-M421-2
OMRON XS3P-M421-2 Manual And Instructions
XS3P-M421-2 datasheetPDF datasheet
OMRON XS3P-M421-2 Product information and technical parameters：
Brand: OMRON
Name: Round Water-resistant Connectors
Model: XS3P-M421-2
Connection method: M8 screw-mounting.
Panel mounting: Front lock or rear lock.
Pin shape: Solder cup pins.
Applicable wires: AWG24 max.
Minimum order: 50.
Small Round Water-resistive.
Connectors.
Water-resistive, compact connector meets IP67 requirements.
Conventional M8 screw-mounting models are available along with,
S8 snap-in models that connect and disconnect with one touch.
Ideal for a wide variety of FA and OA applications.
Connectors on both cable ends require no harness work.
Some new M8 models with 3 or 5 poles.
