XS5F-D422-G80-F | OMRON Round Water-resistant Connectors XS5F-D422-G80-F
OMRON XS5F-D422-G80-F Manual And Instructions
XS5F-D422-G80-F datasheetPDF datasheet
XS5F-D422-G80-F datasheetPDF datasheet
OMRON XS5F-D422-G80-F Product information and technical parameters：
Brand: OMRON
Name: Round Water-resistant Connectors
Model: XS5F-D422-G80-F
Cable specifications: Fire-retardant, Robot cable.
Cable length L: 5 m.
Cable outer diameter: 6 mm.
Angled Connectors.
Minimum order: 5.
UL: Yes.

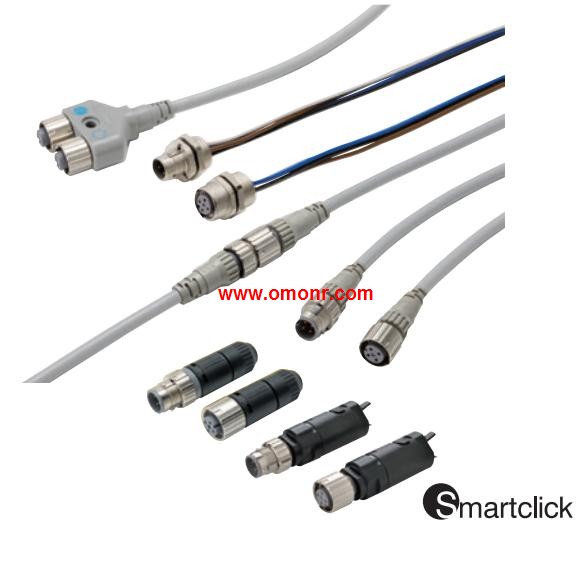

Round Water-resistive Smartclick.
Connectors That Reduce Installation Work.
A newly developed lock mechanism that is compatible with round M12 connectors.
Simply insert the Connectors, then turn them approximately 1/8 of a turn to lock.
A positive click indicates locking.
Features the same degree of protection (IP67) as M12 connectors.
A full line-up of models is planned.
Connectors with Cables are UL approved.
