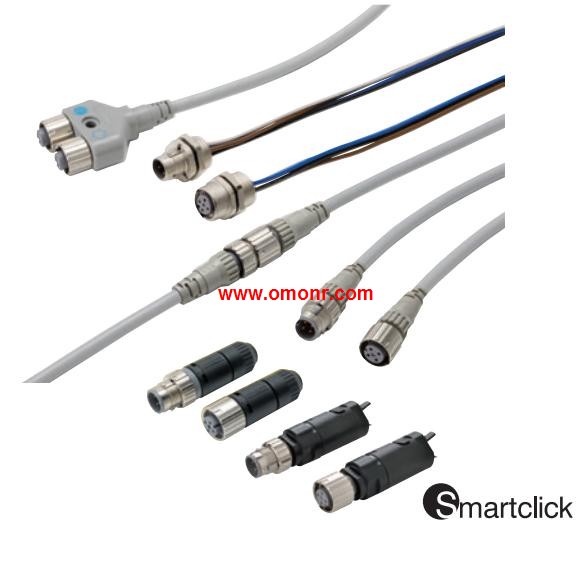

XS5G-D422 | OMRON Round Water-resistant Connectors XS5G-D422
OMRON XS5G-D422 Manual And Instructions
XS5G-D422 datasheetPDF datasheet
XS5G-D422 datasheetPDF datasheet
OMRON XS5G-D422 Product information and technical parameters：
Brand: OMRON
Name: Round Water-resistant Connectors
Model: XS5G-D422
No. of poles: 4.
Connection method: Soldering.
Suitable cable dia: 6 mm (5 to 6).
Core conductor size: 0.5 max.
Suitable sheath material: PVC, PE, PUR.
Angled Connectors.
Minimum order: 50.
Round Water-resistive Smartclick.
Connectors That Reduce Installation Work.
A newly developed lock mechanism that is compatible with round M12 connectors.
Simply insert the Connectors, then turn them approximately 1/8 of a turn to lock.
A positive click indicates locking.
Features the same degree of protection (IP67) as M12 connectors.
A full line-up of models is planned.
Connectors with Cables are UL approved.
