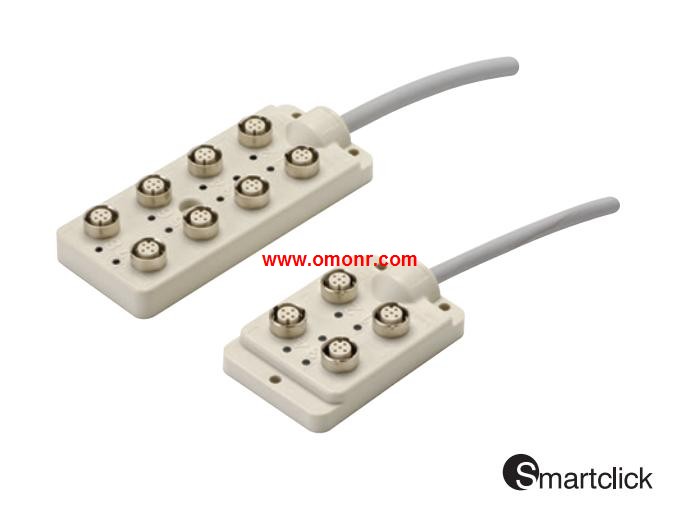

XW3D-P457-G11 | OMRON Connector Terminal Boxes XW3D-P457-G11
OMRON XW3D-P457-G11 Manual And Instructions
XW3D-P457-G11 datasheetPDF datasheet
OMRON XW3D-P457-G11 Product information and technical parameters：
Brand: OMRON
Name: Connector Terminal Boxes
Model: XW3D-P457-G11
Sensor type and wiring: 3-wire DC PNP/2-wire DC 1-4.
Actuator wiring: Actuator wiring 3-4.
No. of ports: 4.
No. of I/O: 8.
Simple Wiring of Sensor Actuators.
Greatly reduce wiring in combination with the Smartclick XS5.
Insert the connector and turn 1/8 of a turn to lock the connectors.
Higher rated current to enable output applications.
Use previous M12 screw connectors.
