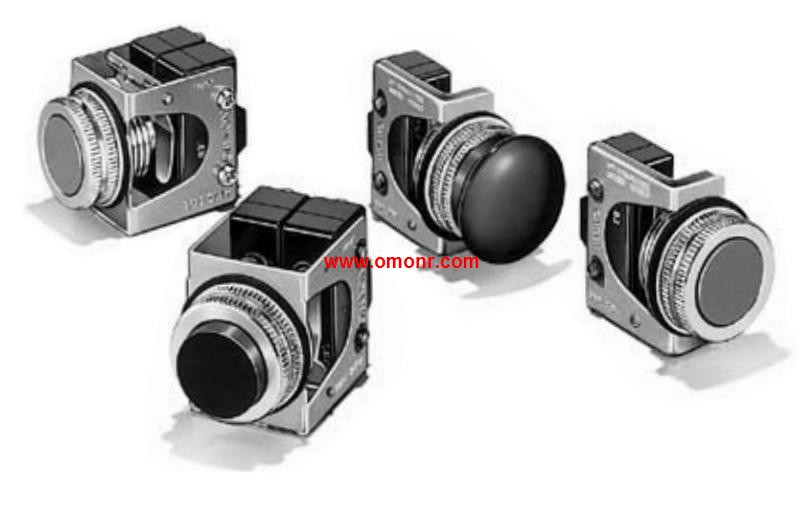

ZAP-2R | OMRON Pushbutton Switch ZAP-2R
OMRON ZAP-2R Manual And Instructions
ZAP-2R datasheetPDF datasheet
OMRON ZAP-2R Product information and technical parameters：
Brand: OMRON
Name: Pushbutton Switch
Model: ZAP-2R
Classification: Momentary operation.
Shape of Operation Unit: 40 dia.
Output: 1.
Operation Unit color: Red (-R).
Long Service Life with Built-in Z-series.
Basic Switch.
Using a Basic Switch enables direct switching of large-capacity loads.
Shock-absorbing construction of Operation Unit protects the Switch.
Drip-proof Pushbutton construction enables use in locations subject to,
splashing water and oil and scattering dust.
Pushbuttons are available in three shapes and six colors.
