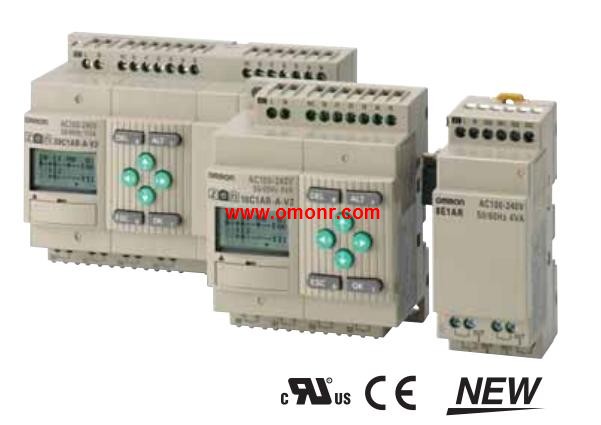

ZEN-KIT01-EV4 | OMRON Programmable Relay ZEN-KIT01-EV4
OMRON ZEN-KIT01-EV4 Manual And Instructions
ZEN-KIT01-EV4 datasheetPDF datasheet
OMRON ZEN-KIT01-EV4 Product information and technical parameters：
Brand: OMRON
Name: Programmable Relay
Model: ZEN-KIT01-EV4
ZEN Kit: Set containing CPU Unit (ZEN-10C1AR-A-V2),
Connecting Cable, ZEN Support Software, and manual.
Even Broader Applications with Increased.
Functionality and Higher Precision.
Increased functionality in a compact body (70 mm wide × 90 mm high).
Easy programming is available using the LCD and operation,
buttons. (See note 1.).
This single Unit easily provides relay, timer, counter, and time,
switch functions.
Expansion is easy with Expansion I/O Units, allowing up to 44,
I/O points. (See note 2.).
Economy-type and Communications-type CPU Units have been,
added to series.
Improved Weekly Timers (See note 1.).
Increased timing accuracy with a monthly deviation of ±15 s,
max. Multiple-day operation and pulse output operation have,
been added.
Select from two power supply options:
100 to 240 VAC or 12 to 24 VDC.
