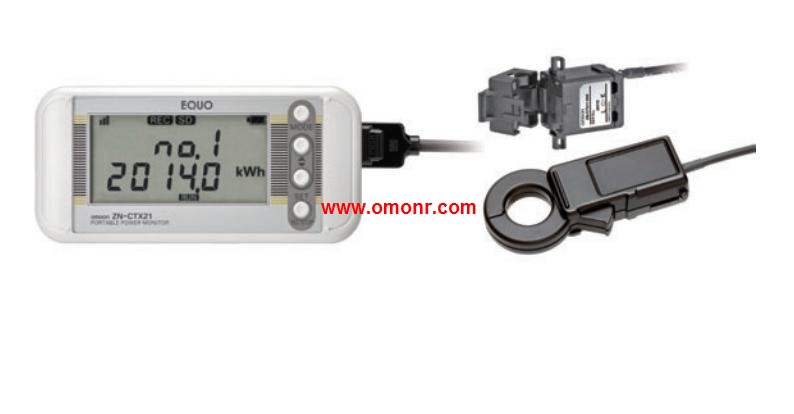

ZN-CTM11-50A | OMRON New-generation environmental sensor ZN-CTM11-50A
OMRON ZN-CTM11-50A Manual And Instructions
ZN-CTM11-50A datasheetPDF datasheet
ZN-CTM11-50A User's Manual

OMRON ZN-CTM11-50A Product information and technical parameters:
Brand: OMRON
Name: New-generation environmental sensor
Model: ZN-CTM11-50A
Product name: Split type CT, Connector: For connecting the branch cable,
Cable length: 0.2 m.
Power supply: Battery/DC cable.
Easy and Quick "Checking Power"at the Worksite.

Condensed in the control cabinet for all power monitoring function.
Intelligent electric power monitor conforming to the international standard.
The design, installation, wiring, assembly and other issues can be resolved by the 1.
Small and optional measurement of multiple loops. Product name: Split type CT, Connector: For connecting the branch cable,
Cable length: 0 OMRON ZN-CTM11-50A. 2 m.
Power supply: Battery/DC cable ZN-CTM11-50A
Easy and Quick "Checking Power"at the Worksite. Make your entire production environment visible.
Multi-point monitoring of environmental data and central control. Applicable circuits: Single-phase, 2-wire: 100 to 480 VAC;
Single-phase, 3-wire: 100/200 VAC; Three-phase, 3-wire: 100 to 480 VAC;
Three-phase, 4-wire: 85 to 277 VAC OMRON ZN-CTM11-50A.
Power supply voltage (shared): 100 to 240 VAC.
Dimensions: 96 × 48 × 93 (H × W × D).
Communications: RS-485.
Protocol: CompoWay/F, 31 nodes; Modbus, 99 nodes,
(Both are supported by the same model.)
High-performance Power Monitor Suitable for On-panel Mounting and Display.
Assists Energy-saving Analysis.
Energy classification for wasted standby and stopped power OMRON ZN-CTM11-50A.
(Classification based on external inputs is also supported.)
Power and current can be measured simultaneously.
Measurement of flow rates with a pulse conversion function.
Simple temperature measurements with Temperature Sensor included in the Unit.
High-precision Measurements.
Measurement of generated power (regenerative power),
leading reactive power, lagging reactive power, and consumed power.
Power measurements on the primary side of inverters,
which are widely used to save energy.
Automatic range switching for accurate measurement of standby and stopped power.
Energy-saving Functions.
Conversion to monetary cost. (Also used for classified standby and stopped power ZN-CTM11-50A. )
Alarm outputs can be selected for active power, reactive power,
regenerative power, current, voltage, or power factor.
The Power Monitor can log measurement data and supports Modbus communications.
Installation and Settingss ZN-CTM11-50A.
Direct measurement of three-phase, four-wire, 400-V line voltage.
Simple measurements without voltage wiring.
Incorrect voltage wiring detection.
