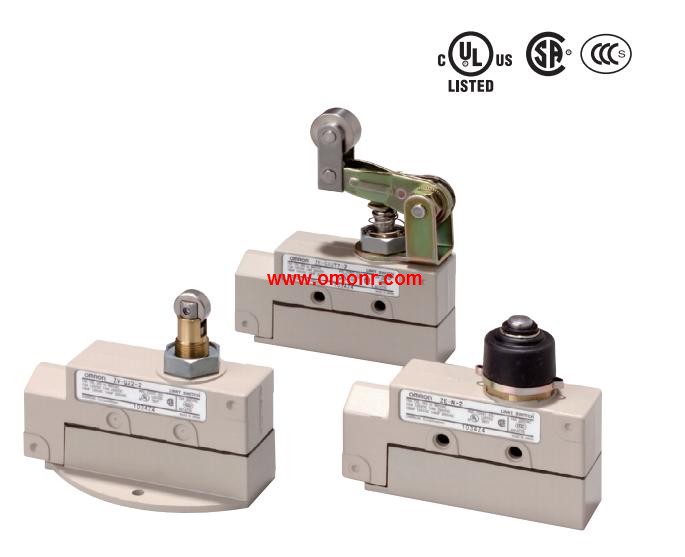

ZV-N-2 | OMRON Enclosed Switches ZV-N-2
OMRON ZV-N-2 Manual And Instructions
ZV-N-2 datasheetPDF datasheet
OMRON ZV-N-2 Product information and technical parameters：
Brand: OMRON
Name: Enclosed Switches
Model: ZV-N-2
Actuator: Sealed (Booted); Sealed plunger; AC.
Mounting: Base mounting.
Approved standards: UL CSA.
General-purpose Enclosed.
Switches with High Breaking.
Capacity and High Durability.
Z General-purpose Basic Switches are built into ZE, ZV,
and ZV2 Switches. They provided high durability and high,
breaking capacity.
X Basic Switches with magnetic blowout are built into XE,
XV, and XV2 Switches. DC models have also been added,
to the series.
Three mounting methods (side, base, and diagonal side),
and many types of actuator are available.
Terminals face the front when the cover is removed for,
easy connection.
Switches with ground terminals have CE marking.
Approved by UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for information on approved models.)
...More relevant models >>>>
