LK Automation Limited
Brand:
OMRON

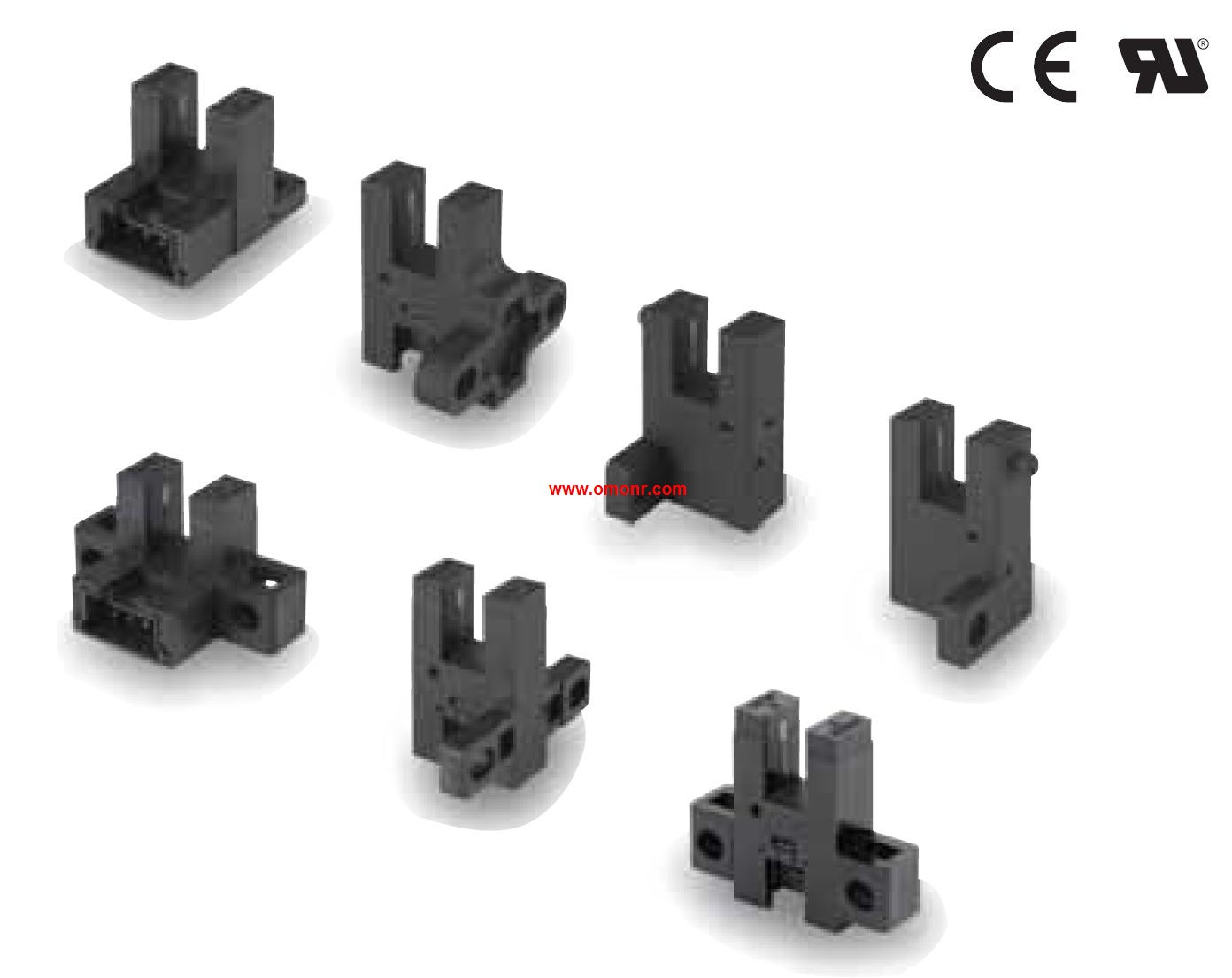

EE-SX971-C1 | OMRON Slot-type Photomicrosensor EE-SX971-C1
OMRON EE-SX971-C1 Manual And Instructions
EE-SX971-C1 datasheetPDF datasheet
EE-SX971-C1 INSTRUCTION sheet
OMRON EE-SX971-C1 Product information and technical parameters：
Brand: OMRON
Name: Slot-type Photomicrosensor
Model: EE-SX971-C1
Appearance: L-shaped.
Sensing method: Through beam type (with slot).
Connecting method: Connector model (4 poles).
Sensing distance: 5 mm (slot width).
Operating mode: Dark-ON/Light-ON (2 outputs).
Indicator mode: Incident light.
Model: NPN output.
Built-in connector enables,
downsizing and easier connection.
Protective circuit for safe operation.
A built-in connector minimizes the shape and dimensional,
requirements.
Two outputs: light-ON and dark-ON.
Complete lineup including seven different shapes.
Safer operation with built-in power supply reverse polarity,
protection.
Output overcurrent protection with a thermal shutdown,
circuit (patent pending).
The indicator can be seen from many directions to enable,
installation in more locations.
Connector with lock that mates with commercially available,
connectors.
...More relevant models >>>>
