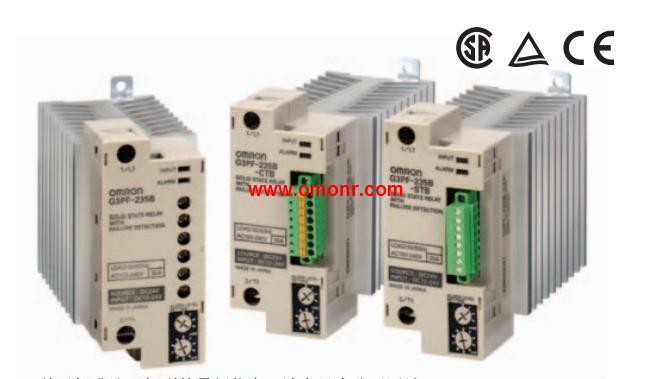

G3PF Series | OMRON Solid State Relays with Built-in Current Transformer G3PF Series
OMRON G3PF Series Manual And Instructions
G3PF Series datasheetPDF datasheet
OMRON G3PF Series Product information and technical parameters：
Brand: OMRON
Name: Solid State Relays with Built-in Current Transformer
Model: G3PF Series
A New-concept SSR with Built-in.
Current Transformer.
Heater Burnout and SSR Short.
circuit Failure Detection.
Built-in Current Transformer (CT) helps reduce wiring steps.
Detects the burnout of any one of a group of heaters.
Detects the burnout of 3-phase heaters.
Detects SSR short-circuit failures.
Error detection level can be easily set with a switch.
Mounts to a DIN track or with screws.
Three types of input terminals available: M3 terminals,
screwless clamp terminals (detachable), or compact slotted,
screw terminals (detachable).
Certified for CSA and EN (TÜV).
The G3PF-2@@B-@@@ Series is UL certified.
...More relevant models >>>>
