H3CA Series | OMRON Solid-state Timer H3CA Series
OMRON H3CA Series Manual And Instructions
H3CA Series datasheetPDF datasheet
OMRON H3CA Series Product information and technical parameters：
Brand: OMRON
Name: Solid-state Timer
Model: H3CA Series

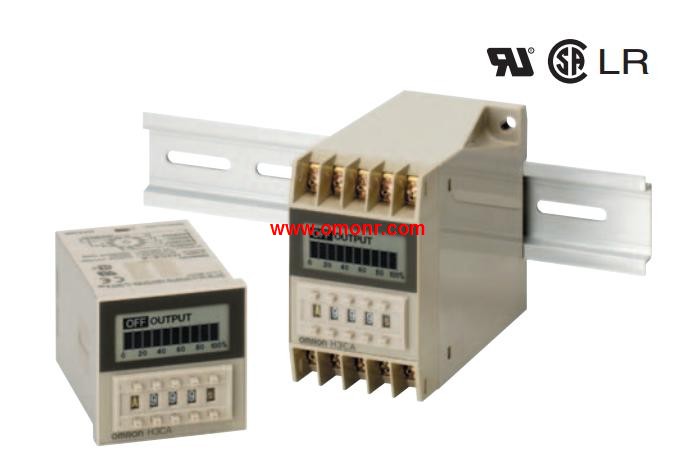

DIN-sized (48 x 48, 45 x 75 mm) Timer with.
Digital Setting and LCD Display.
Dual power supplies for free AC/DC.
Eight operation modes selectable with one unit.
Any desired time can be set digitally within a range from 0.1,
seconds to 9,990 hrs.
Four external signal inputs.
ON/OFF indicator for control output and bar indicator for,
remaining time.
Conforms to UL, CSA, and CE marking.
...More relevant models >>>>
