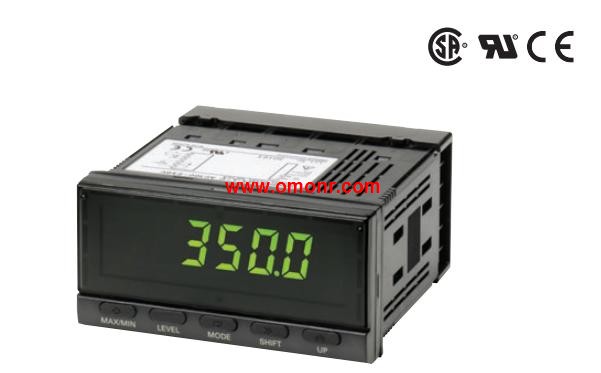

K3MA-L AC/DC24V | OMRON Temperature Meter K3MA-L AC/DC24V
OMRON K3MA-L AC/DC24V Manual And Instructions
K3MA-L AC/DC24V datasheetPDF datasheet
OMRON K3MA-L AC/DC24V Product information and technical parameters：
Brand: OMRON
Name: Temperature Meter
Model: K3MA-L AC/DC24V
Input type: Platinum-resistance thermometer or thermocouple.
Supply voltage: 24 VAC/VDC.
Output: None.
Highly Visible LCD Display with 2-color (Red and Green) LEDs.
Wide input range - select from two types of platinum-resistance,
thermometers and ten types of thermocouples.
Front-panel key operation for easy setting.
Average processing function suppresses flicker.
Temperature input shift and temperature unit selection functions.
Easy confirmation of max/min display.
Short 80-mm depth (measured from edge of face plate).
Finger protective cover (standard equipment) protects against,
electric shock.
Water- and dust-proof NEMA4X (IP66 equivalent) front panel.
Recognized to conform to U.S. and Canadian requirements under,
the Component Recognition Program of UL.
CE marking.
