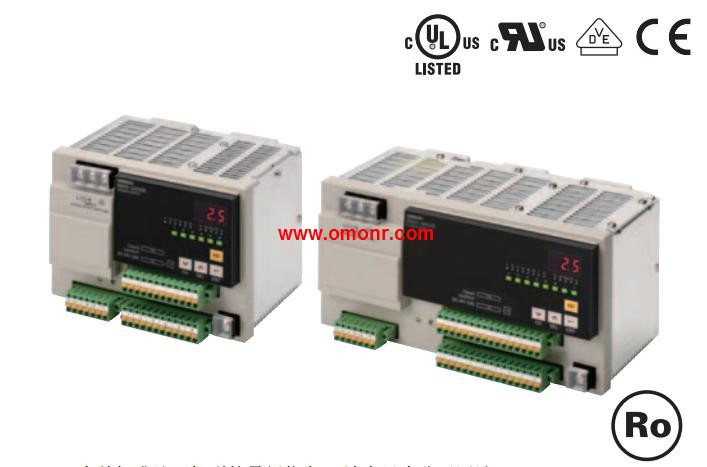

S8AS-24006N | OMRON Smart Power Supply S8AS-24006N
OMRON S8AS-24006N Manual And Instructions
S8AS-24006N datasheetPDF datasheet
S8AS-24006N USER'S MANUAL
S8AS-24006N Connection Guide
OMRON S8AS-24006N Product information and technical parameters：
Brand: OMRON
Name: Smart Power Supply
Model: S8AS-24006N
Capacity: 240 W.
Input voltage: 100 to 240 VAC.
Output voltage: 24 V.
Maximum cutoff output current (per branch): 3.8 A.
Total output current: 10 A.
Number of output branches: 6 branch outputs.
Communications functions: None.
Parameter settings: Not changeable .
A New Type of Power Supply That.
Provides Safety and Maintainability.
240- and 480-W power supplies with and digital circuit,
protectors in a single package.
Each branch output tripping current value can be easily,
set at 0.1-A increments.
Startup and shutdown sequence control included.
Various monitor displays and alarms (output voltage,
output current, maintenance forecast monitor,
temperature).
Conforms to UL Class 2.
Mounts to DIN Rail.
...More relevant models >>>>
