K3HB-PPB-ABCD1 AC100-240 | OMRON Time interval table K3HB-PPB-ABCD1 AC100-240
OMRON K3HB-PPB-ABCD1 AC100-240 Manual And Instructions
K3HB-PPB-ABCD1 AC100-240 datasheetPDF datasheet

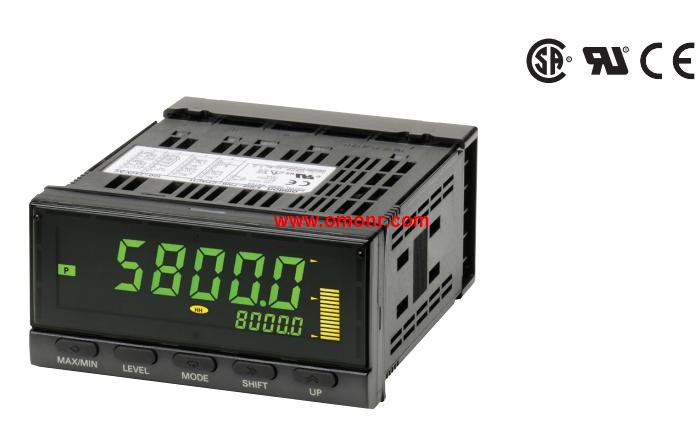

OMRON K3HB-PPB-ABCD1 AC100-240 Product information and technical parameters：
Brand: OMRON
Name: Time interval table
Model: K3HB-PPB-ABCD1 AC100-240
Input type: PNP input type.
Event input terminal 5 points (HOLD, RESET) equipped with.
External power supply DC12V80mA.
Note: K3HB-RPB-A, K3HB-RNB-A is not equipped with event input.
BCD+ transistor: -- NPN open collector (5 bit output +HH, H, PASS, L, LL).
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC100 ~ 240V.
Measurement of 2 points through the speed, time, or cycle of the digital time interval table.
Action determine the color, can switch the green / Red 2 kinds of color display.
Measurement of wide range of pulse interval time.
Measuring, calculating and displaying the pulse interval between 2 points.
Range of pulse interval measurement
